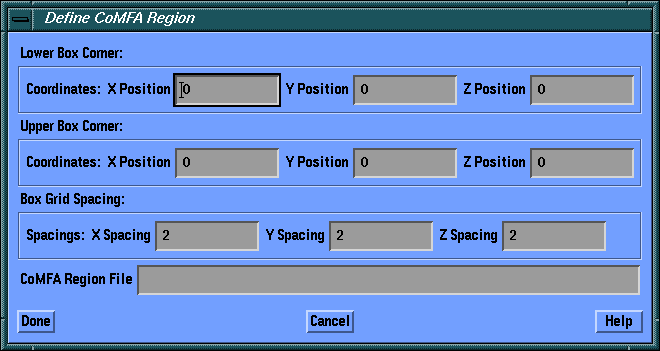

View Define CoMFA Region Dialog Box

Define CoMFA Region Dialog Box

Lower Box Corner Coordinates: X Position, Y Position, Z Position: fields; These fields define the coordinates for the lower corner of a box in cartesian space. The box is totally defined when its upper corner coordinates and grid spacing are also set.
Upper Box Corner Coordinates: X Position, Y Position, Z Position: fields; These fields define the coordinates for the upper corner of a box in cartesian space. The box is totally defined when its lower corner coordinates and grid spacing are also set.
Box Grid Spacings: X Spacing, Y Spacing, Z Spacing: fields; These fields represent the desired spacing in Angstroms between adjacent grid points for the X, Y, and Z dimensions of the grid region being created by the routine. Generally, CoMFA runs use between 1.0 and 2.0 Angstrom grid spacing in all cartesian directions.
CoMFA Region File: field; This parameter defines the name of the CoMFA Region File that is created by the command. The name is passed back to the Add Column (HintCoMFA) Dialog Box for processing the field calculation.
